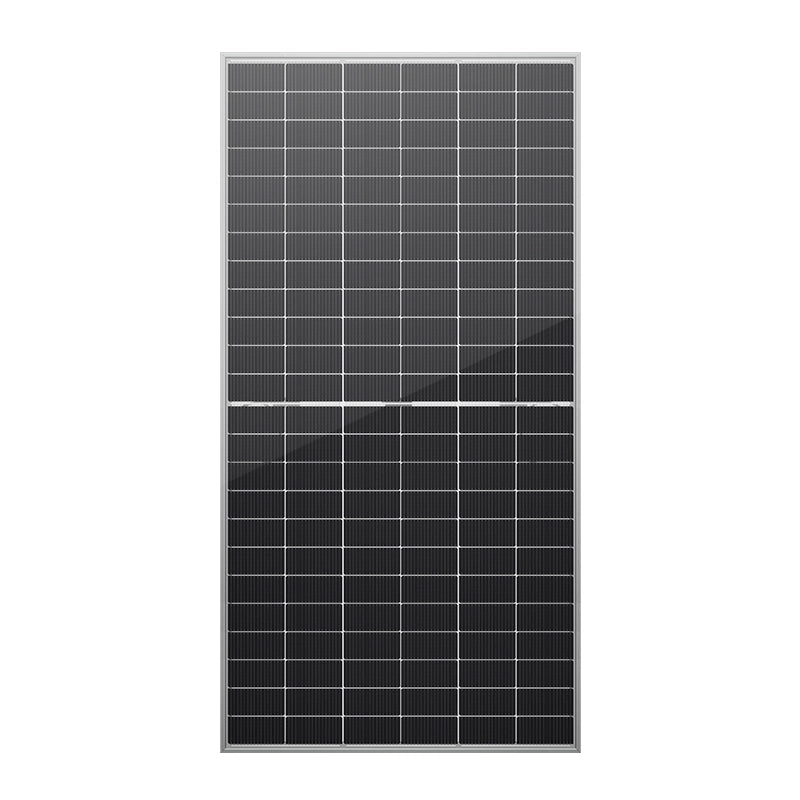

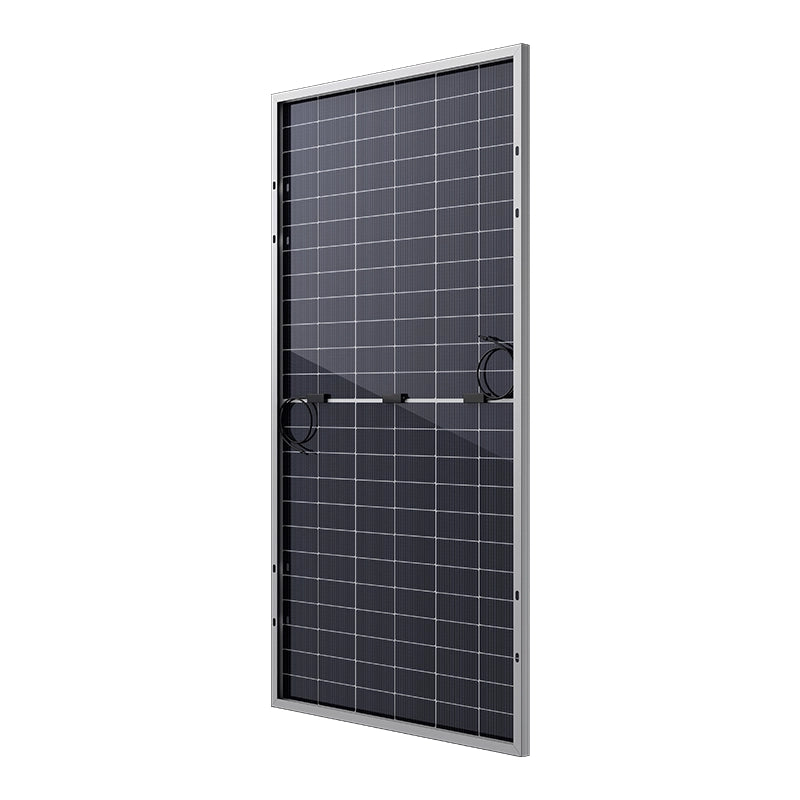

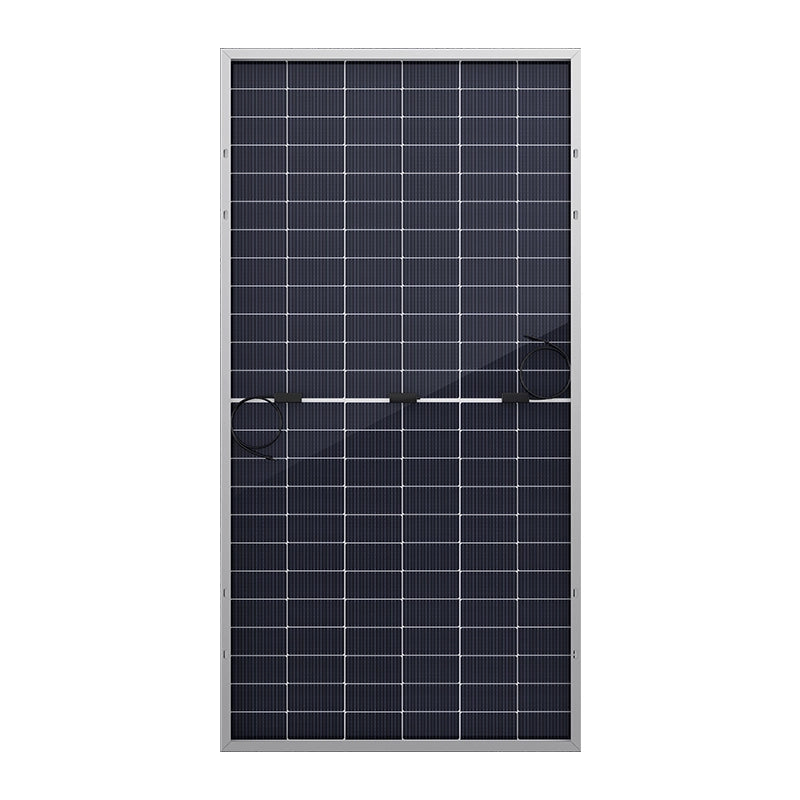

[1 Pallet] of 36pcs MT5-Pro 575-Watt Bifacial N-Type TOPCon Solar Panels With Free Shipping and 25-Year Warranty

1. Core Specifications

The 182mm N-TOPCon Bifacial Solar Module features a cell configuration of 144 half-cut N-type monocrystalline cells with a 16BB design. It has dimensions of 2278×1134×35mm (Length×Width×Height) and weighs 28kg ±3% when framed, providing a standardized size and weight for easy installation and handling in various solar power systems.

2. Electrical Parameters (STC)
Under Standard Test Conditions (STC), this solar module offers a maximum power output (Pmax) ranging from 580 to 600W, with an open-circuit voltage (Voc) of 50.46-51.15V and a short-circuit current (Isc) of 14.16-14.56A. It has a bifacial gain of ≤25% when the bifaciality is 70%, enhancing overall energy production. The temperature coefficient for Pmax is -0.29%/°C, indicating its stable performance under different temperature conditions.

3. Mechanical Design
The module's mechanical structure consists of 2.5mm tempered front and rear glass, ensuring durability and protection against environmental factors. The frame is made of anodized aluminum alloy with a 35mm profile, providing strength and corrosion resistance. It is equipped with an IP68 junction box and 300mm cables, which offer excellent protection against dust and water ingress, ensuring reliable electrical connections.

4. Certifications and Warranty
This solar module complies with all UL standards, IEC 61215/61730 standards, guaranteeing its quality and safety. It is also PID-free, showing less than 5% degradation after a 96-hour test. In terms of warranty, it provides a 30-year linear power output warranty, ensuring that the power output remains at least 87% at the end of the lifespan, and a 25-year materials and workmanship coverage, giving customers long-term reliability and confidence in the product.

Key Features

• Superior Power Output: Bifacial design captures sunlight from both sides, boosting generation by up to 25% with rear-side power gains (e.g., 719W at 25% gain).
• Zero LID: N-type cells naturally eliminate light-induced degradation, ensuring consistent high power generation from day one.
• Enhanced Reliability: Full electrical isolation with no polysilicon wrap-around, zero leakage current, and safer for roof installations.
• Low-Light Performance: Better response in cloudy or foggy conditions for reliable energy production year-round.
• Temperature Resilience: Low temperature coefficient (-0.29%/°C for Pmax) maintains higher output in hot environments.
• Durable Construction: Dual 2.0mm semi-tempered glass, anodized aluminum frame, IP68-rated junction box, and withstands 5400Pa mechanical loads.
• Easy Installation: Lightweight at 31.5kg per panel, with customizable cable lengths and MC4-compatible connectors.

Technical Specifications

Electrical Characteristics (STC)
